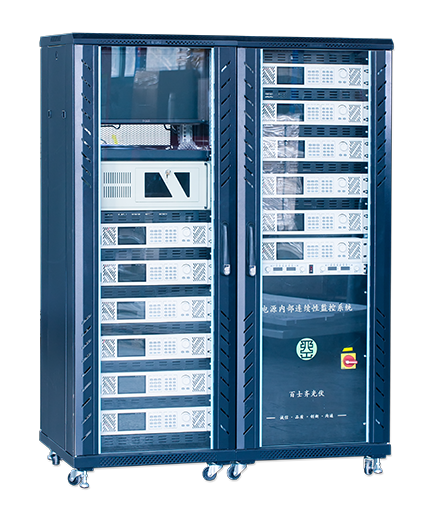

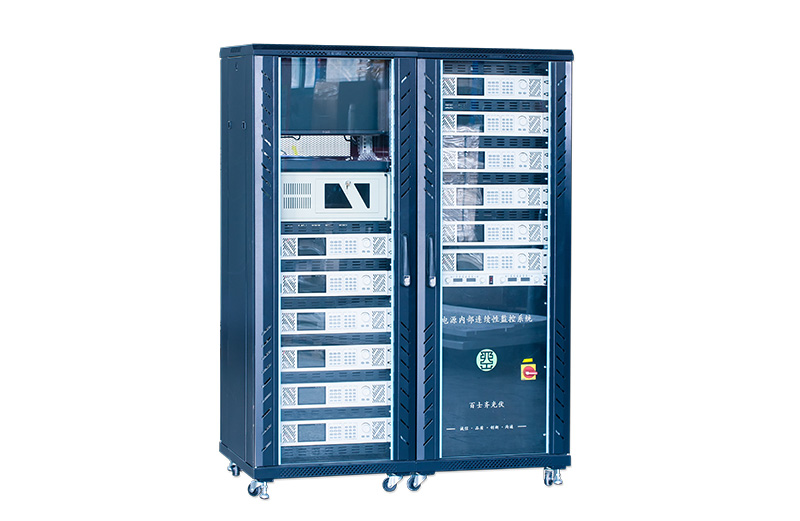

product details Integrating the essence of mechanical design with the wisdom of electrical research and development
■ The current continuity monitoring system is mainly used for reliability testing, including wet freezing, temperature cycling, wet heat and other tests. It complies with the high and low temperature cycling and wet freezing test clauses in the IEC61215 standard.
■The system provides stable DC power, records current and temperature, and controls the opening of the DC power supply through temperature to monitor multiple currents and temperatures in real time.
■The Baishiqi series products provide a power testing and monitoring system to meet the power requirements during the testing process of solar modules.
Functional characteristicsFunctional characteristics
-
High precision high-power power supply+Labview software driver, stable and reliable performance;
-
Meet the TC200 HF10 testing requirements in the old version of the standard;
-
Meet the testing requirements of TC200 HF10 in the latest version of the standard;
-
Meet customers' requirements for non calibrated curve testing;
(The relationship between temperature and current can be arbitrarily set to maximize the satisfaction of customers' new product development needs);
-
Comes with sample protection function;
-
Equipped with a communication interface with the aging box, it can automatically cut off the power output when the aging box malfunctions;
-
The display and control interface is intuitive and clear, with a touch sensitive selection menu that is simple and easy to use;
-
Flexible program control brings users high-end products with stable performance and high cost-effectiveness;
-
Real time and historical curves can be generated, and EXCEL or ACCESS files can be generated
-
Communication interface, which can achieve handshake communication function with different test chambers.
Performance parameterPerformance parameter
Power supply section
|
input
|
voltage
|
Single phase 380 VAC ± 15%
|
frequency
|
47~63Hz
|
output
|
voltage
|
0-100V (customizable) display accuracy: 0.01V
|
electric current
|
0-30A (customizable) display accuracy: 0.001A
|
power
|
3000W (customizable)
|
current accuracy
|
Steady current CC: ≤ 0.05%+0.5% F * S (set value)
|
Voltage accuracy
|
Voltage stabilizing CV: ≤ 0.05%+0.3%F*S(set value)
|
Efficiency
|
≥90%(Standard communication input, full load)
|
output display
|
Display mode
|
Four digit LED digital display
|
display resolution
|
4-digit display accuracy
|
Instrument accuracy
|
±0.1%
|
Remote simulation monitoring
|
analog control、USB/LAN
|
Remote programming/monitoring accuracy
|
voltage: 2mV
|
electric current:2mA
|
protect
|
Protection against input undervoltage, output overvoltage, overheating, short circuit, etc
|
Cooling method
|
Fan(s)
|
size
|
142(W)*124(H)*350(D)mm
|
Temperature section
|
Temperature sensor measurement range
|
-70--+200℃
|
Temperature sensor measurement accuracy
|
-70℃ to -50℃ accuracy:±0.5℃
-49℃ to +200℃ accuracy:±0.3℃
|
sensor length
|
Standard 8 meters
|
Sensor model
|
Four wire PT100
|
Sales records of the same type of equipmentSales records of the same type of equipment
|
Accumulated sales quantity>200 sets
|
