■ Meet standards：IEC61730-2 MOT13

■ Purpose：Prove that all exposed conductor surfaces of the component are mutually conductive and grounded.

■ Equipment Introduction：

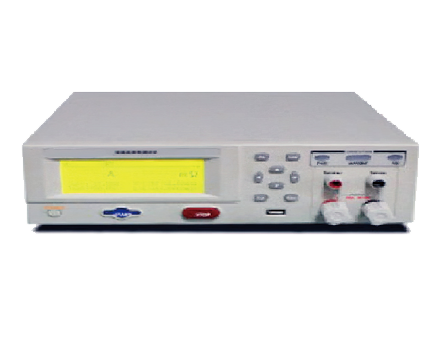

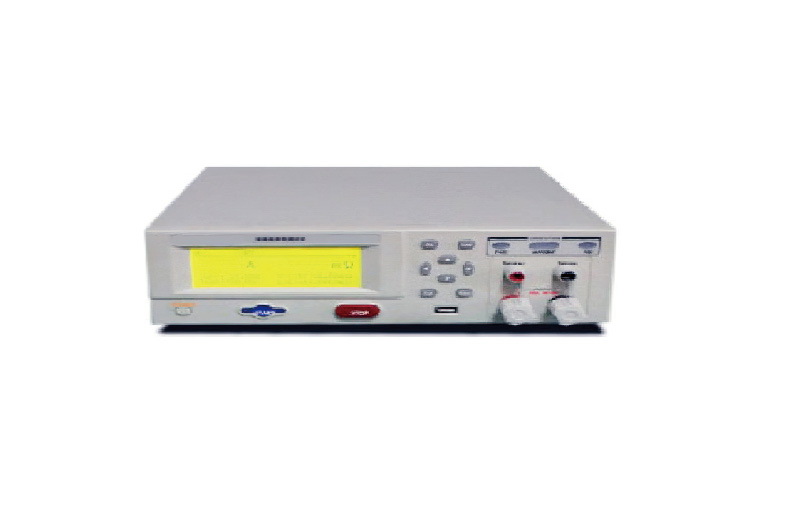

The BSO9930A photovoltaic grounding anode tester is specially designed by our company for the grounding resistance characteristics of photovoltaic modules, also known as the grounding continuity tester.

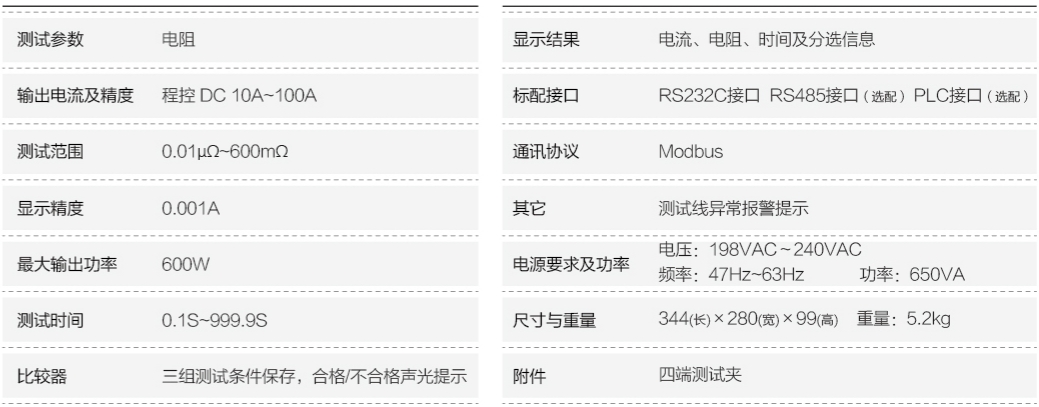

Programmable output test current DC 10~100A， The testing range is 0.01uQ~600mQ, with stable testing and high accuracy. It has the function of testing line anomaly detection, with 3 sets of testing modes, and can realize programmable testing and sorting.

RS485 interface is optional, and instrument networking can be easily achieved through MODBUS communication protocol. Compliant with the photovoltaic standard IEC61730.
