product details Integrating the essence of mechanical design with the wisdom of electrical research and development

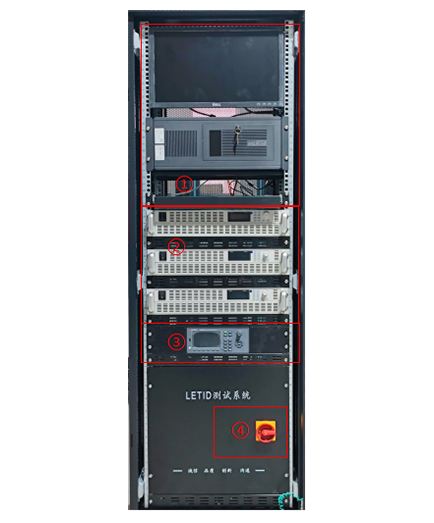

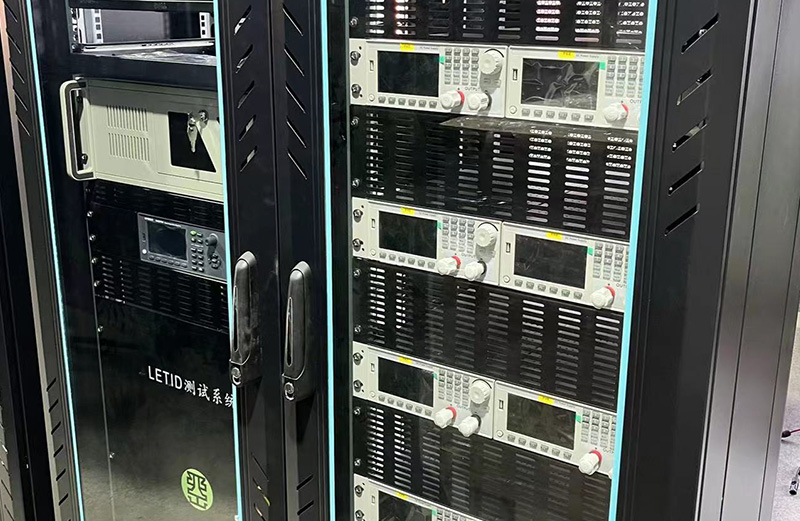

■ The LETID system is a system used to test the performance degradation of photovoltaic modules under high temperature and lighting conditions. LETID (Light and elevated Temperature Induced Degradation) refers to the performance degradation phenomenon of photovoltaic modules under high temperature and lighting conditions, which can have a negative impact on the power generation efficiency of the modules. The working principle and function of the LETID system. The LeTID system simulates high temperature and lighting conditions to test the performance changes of photovoltaic modules under long-term high irradiation and high temperature environments. The system typically includes the following functions:
■ TC Thermal Cycle Test:Simulate the thermal cycling of components at different temperatures to evaluate their heat resistance performance.
■ HF wet freezing test:Performance changes of test components in wet and frozen environments。
■ High temperature attenuation test under LETID illumination:Test the performance degradation of components under high temperature and light conditions。
Functional characteristicsFunctional characteristics
-
This system can provide simultaneous testing of multiple components, with testing channels configured according to customer requirements, typically 8 or 12 channels.
-
The device is equipped with one independent temperature sensor for each test sample, and the data recording interval can be customized by the user.
-
The system software runs automatically based on user preset parameters and has B-0 CID testing capability.
-
The system collects dark voltage in real time and automatically corrects the temperature dark voltage (Vd '), providing a temperature corrected dark voltage curve for plotting the changes in dark voltage (Vd')
-
The software automatically recognizes and records the minimum temperature corrected dark voltage value Vd, min ', and the recording interval can be set.
-
The software automatically recognizes and records the hourly average value Vd and avg of temperature corrected dark voltage, and the recording interval can be set.
-
Software automatically performs temperature correction and dark voltage screening
Sales records of the same type of equipmentSales records of the same type of equipment
|
Accumulated sales quantity>100 sets
|
