Wet leakage testing system

Mainly used to verify the insulation performance of photovoltaic modules under humid working conditions, detect the impact of moisture such as rain, fog, dew or dissolved snow entering the interior of the module on the circuit, including c...

TEL

15861558832

product details Integrating the essence of mechanical design with the wisdom of electrical research and development

湿漏电测试仪

■ Mainly used to verify the insulation performance of photovoltaic modules under humid working conditions, detect the impact of moisture such as rain, fog, dew or dissolved snow entering the interior of the module on the circuit, including corrosion, leakage or safety accidents. The system mainly consists of temperature controlled water tank, insulation voltage tester and other parts.

Functional characteristicsFunctional characteristics

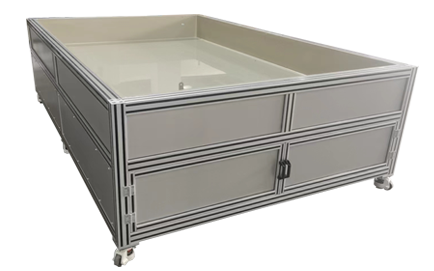

The temperature controlled sink is made of aluminum profiles and imported PP sheets, with a beautiful appearance.
Multi group partitioned heating achieves water temperature uniformity;

PID automatic temperature control regulation, achieving the standard requirement of 22 ± 2 ℃ (the equipment has heating and cooling functions).
The equipment is equipped with a conductivity tester as standard, which meets the requirements for resistivity testing. The conductivity range is 0~1999us/cm ± 1.5% FS, and the temperature testing range is 10.0~40.0 ℃± 1 ℃

Performance parameterPerformance parameter

Size inside the sink	Length 2600mm * Width 1400mm * Depth 250mm	Protector	Overcurrent, overvoltage, overtemperature, and short circuit protection
Circuit form	switch power supply	cooling	Fan forced cooling
INPUT VOLTAGE	AC 220V±10%	display	Digital voltmeter (1V) 0-9999H59M59S
input frequency	50/60Hz	Usage environment	-10℃ to 45℃（Continuous operation with relative humidity<90%）
Output voltage	DC 0V to 15000V(Continuing Adjust)	pressure resistance	Input AC10000V/1min without any flying fox breakdown phenomenon on the shell
Maximum rated current	50mA	Load stabilization effect	≤0.1%
Working time setting	0-9999H59M59S（0 represents continuous output）	ripple wave	≤0.3%
source voltage effect	≤0.1%

Sales records of the same type of equipmentSales records of the same type of equipment


Accumulated sales quantity＞100 sets

Wet leakage testing system

The temperature controlled sink is made of aluminum profiles and imported PP sheets, with a beautiful appearance.

Multi group partitioned heating achieves water temperature uniformity;

PID automatic temperature control regulation, achieving the standard requirement of 22 ± 2 ℃ (the equipment has heating and cooling functions).

The equipment is equipped with a conductivity tester as standard, which meets the requirements for resistivity testing. The conductivity range is 0~1999us/cm ± 1.5% FS, and the temperature testing range is 10.0~40.0 ℃± 1 ℃
