product details Integrating the essence of mechanical design with the wisdom of electrical research and development
Functional Features：
Meets standard: IEC61215-2 MQT17
Test objective: To evaluate the component's ability to withstand hail impact.
Functional characteristicsFunctional characteristics
-
Ice hockey launch speed is measurable
-

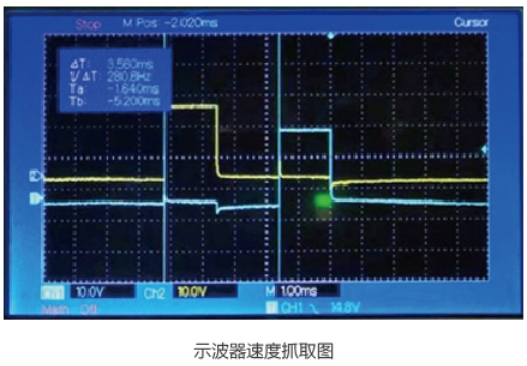

The speed measurement unit is completed using two photoelectric sensors mounted in front of the launch tube, with a distance of 10cm between the two sensors. The speed is obtained using v=s/t and displayed in real-time. The speed testing device consists of three parts: detection sensors, high-speed response modules, and software modules. The system uses stable performance photoelectric sensors and programmable controllers to achieve speed measurement function.

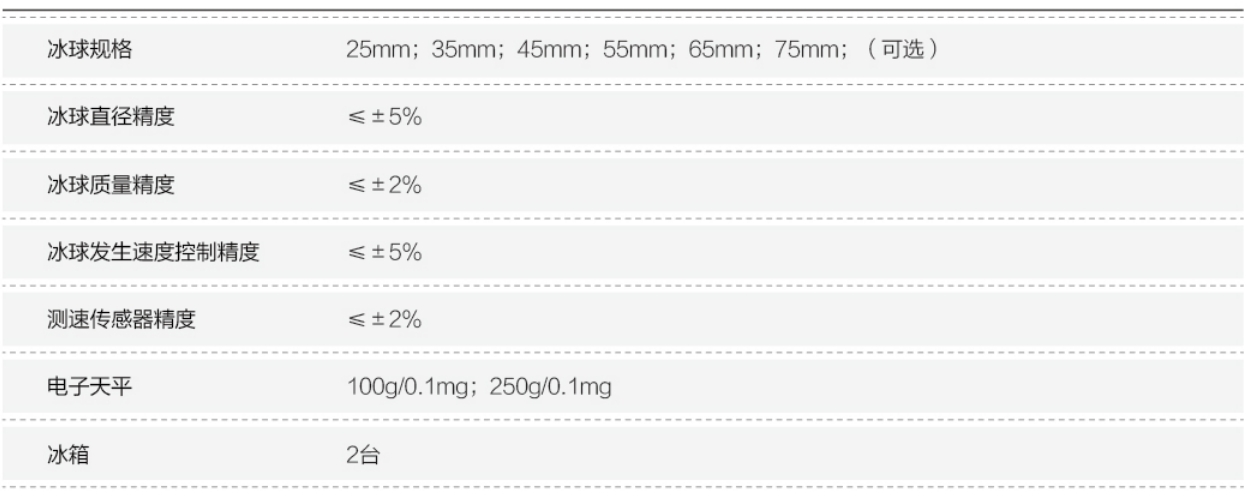

Performance parameterPerformance parameter
